HF DESICCANT FILTERS

HF Guard desiccant filters protect industrial equipment from contamination by moisture and polluting particles.

Bacterial contamination causes lack of fuel supply to the engine, contamination of fuel tanks, high costs for replacing injectors, pitting and corrosion of the cylinder head, irregular ignition, interference of the biomass in the sensors and black smoke from incomplete combustion.

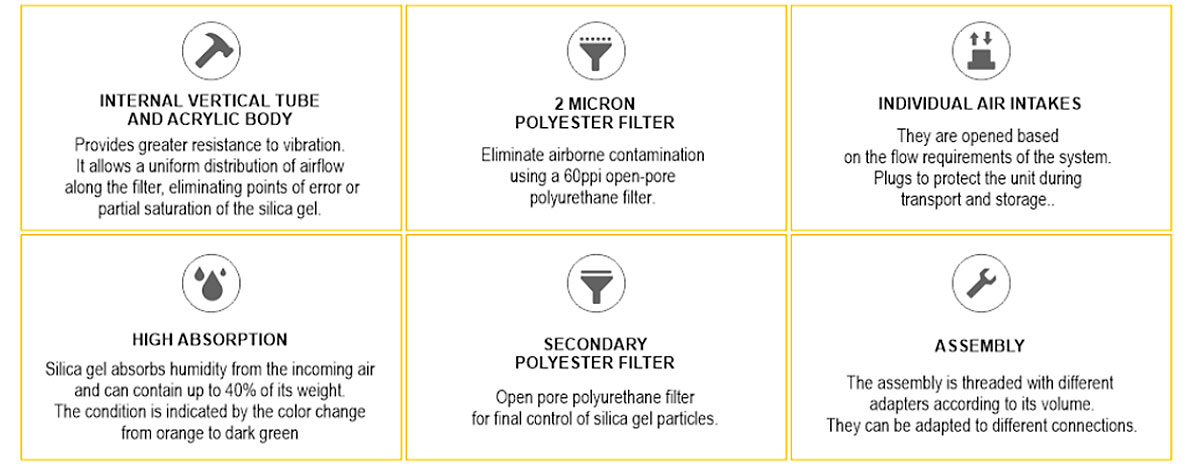

Desiccant filters provide the solution to these problems by ensuring that the air entering the interior of the machine does not contain moisture. Thanks to the characteristics of its manufacturing components.

Download Brochure

Applications

They can be used in:

Reducers
Hydraulic stations
Stacking of oil drums
Fuel storage
Small conveyor belt reducers

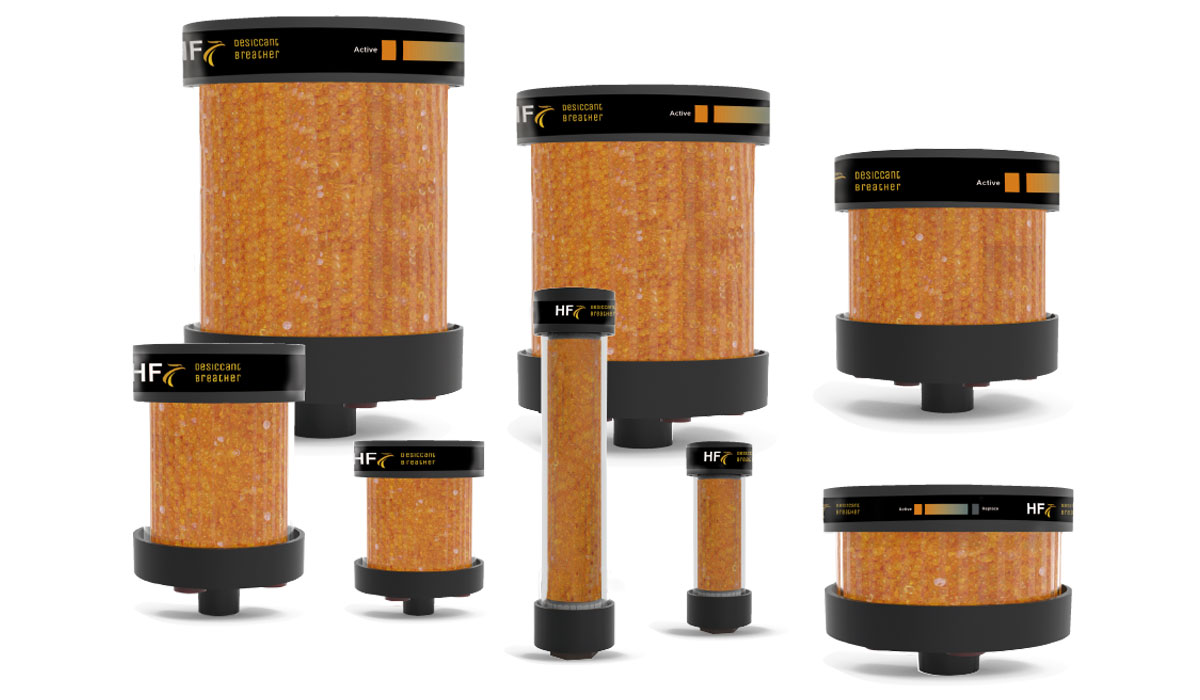

STANDARD DESICCANT FILTER MODELS

HF-1

Model	Diameter (A)	Height (B)	Connection	Filtering Efficiency	Quantity Silica Gel	Water absorption	Maximum Flow
HF-1 XXL	120 mm	250 mm	1" NPT	3µ (β₃≥200)	1400 gr	600 cm³	450 lts/min
HF-1 XL	120 mm	200 mm	1" NPT	3µ (β₃≥200)	1200 gr	480 cm³	450 lts/min
HF-1 L	120 mm	170 mm	1" NPT	3µ (β₃≥200)	900 gr	360 cm³	450 lts/min
HF-1 M	120 mm	120 mm	1" NPT	3µ (β₃≥200)	600 gr	240 cm³	450 lts/min
H-1 S	120 mm	80 mm	1" NPT	3µ (β₃≥200)	300 gr	120 cm³	450 lts/min

HF-2

Model	Diameter	Height	Connection	Filtering Efficiency	Quantity Silica Gel	Water Absorption	Maximum Flow
HF-2	90 mm	100 mm	3/4" NPT	3µ (β₃≥200)	250 gr	140 cm³	400 lts/min

HF-3

Model	Diameter	Height	Connection	Filtering Efficiency	Quantity Silica Gel	Water Absorption	Maximum Flow
HF-3	70 mm	80 mm	1/2" NPT	3µ (β₃≥200)	110 gr	60 cm³	110 lts/min

HF-4

Model	Diameter	Height	Connection	Filtering Efficiency	Quantity Silica Gel	Water Absorption	Maximum Flow
HF-4 L	32 mm	160 mm	1/8" NPT	3µ (β₃≥200)	30 gr	8 cm³	60 lts/min
HF-4 M	32 mm	120 mm	1/8" NPT	3µ (β₃≥200)	10 gr	6 cm³	60 lts/min
HF-4 S	32 mm	80 mm	1/8" NPT	3µ (β₃≥200)	10 gr	4 cm³	60 lts/min

From your phone, Tablet or PC with ACTIVEGUARD you can track and trace the filter points..

ACTIVEGUARD is an asset management application that associates a code for the filter and another for the equipment, thus keeping a record of changes, expiration dates, filtering news, replacement alarms, among other functionalities.
